Product Overview

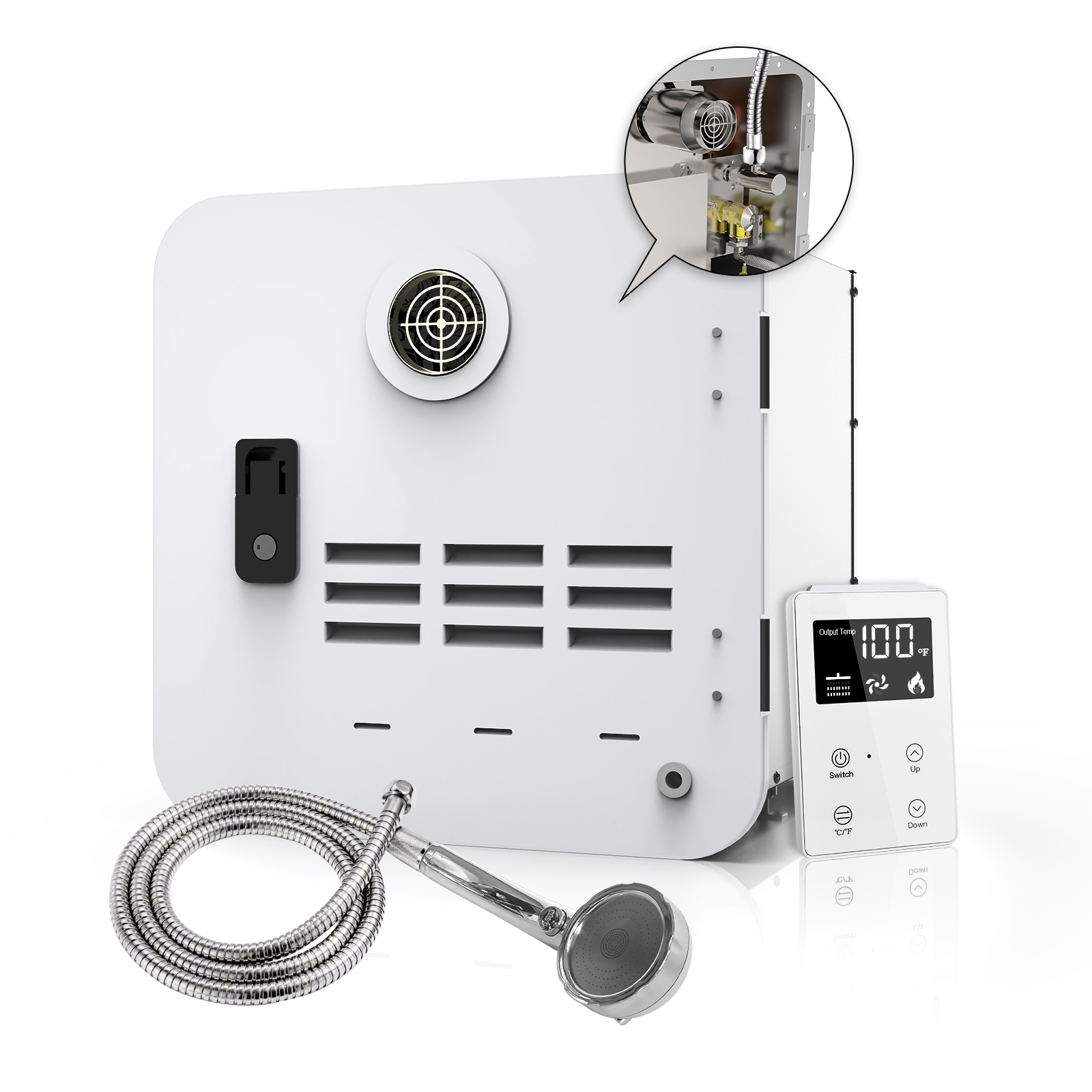

JSQ-RV is a dedicated tankless gas water heater specially designed for RVs and mobile vehicles. Equipped with DC fan, oxygen-free copper heat exchanger and separate wall-mounted smart controller, this compact 10L unit delivers stable instant hot water with 65,000 Btu maximum input power. It integrates complete multi-protection systems including anti-freeze, overheat and dry burning prevention, adapting to complex outdoor mobile travel environments.
Special Compact RV-Optimized Design
Miniature integrated body with customized inch-size dimensions, perfectly matching limited installation space inside caravans, campers and mobile RVs.
High-Efficiency Stable Heating Core
Adopts DC forced exhaust fan, 4-rows combustion chamber and proportional gas valve, paired with oxygen-free copper heat exchanger to supply steady 10L/min hot water for vehicle daily use.
Independent Wall-Mounted Smart Control
Comes with a detached wired controller for convenient wall placement, supporting remote precise thermostatic adjustment without approaching the main unit.
Full-Range Multi-Layer Safety Protection
Built-in 7 core protection functions: thermostatic control, over-temperature lock, anti-freeze, vibration resistance, electronic ignition, dry combustion prevention and wall-mounted safety structure, ensuring safe operation during outdoor travel.
| Technical specifications | JSW-RV-10L | |
| Gas type | LPG | |
| Maximum Input Rating (Btu/hr) | 65,000 | |
| Minimum Input Rating(Btu/hr) | 14,000 | |
| Water Flow(Ltr/min)△T=25K | 10L/min | |
| Water Flow(Ltr/min)△T=20K | 12L/min | |
| Electric input | DC 12V | |
| Burner type | 4 rows chamber | |
| Number of combustion section | 2 | |
| Combustor cooling method | Water-cooling | |
| Type of fan | DC | |
| Fan installation position | Top-mounted | |
| Performance against wind pressure | >120Pa | |

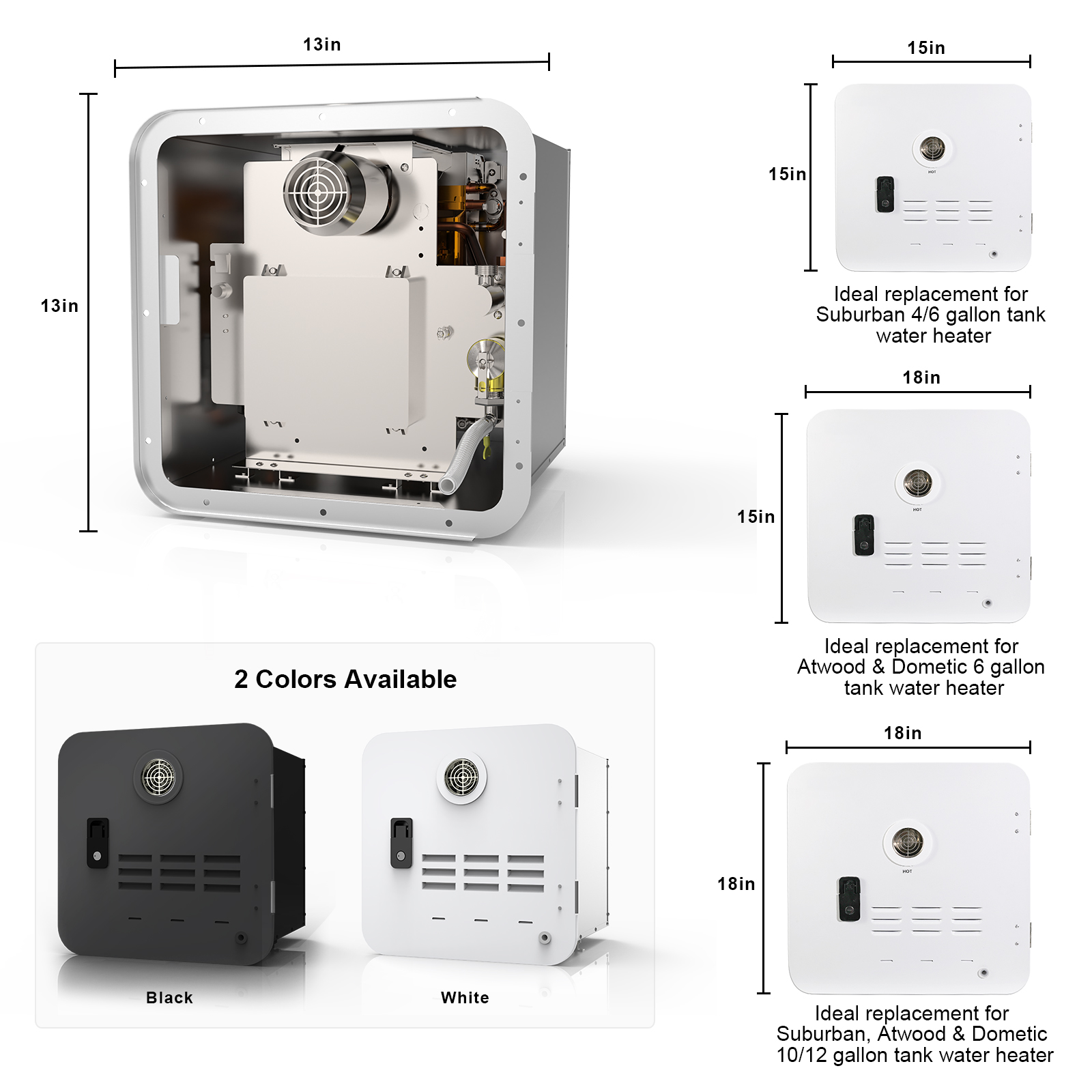

| Product Dimensions (in) HxWxD | 15″ x 15″ x 13.7″/15″ x 18″ x 13.7″/18″ x 18″ x 13.78″ | |
| Package Dimensions (mm) HxWxD | 510x510x442 | |
| Loading Qty (20GP/40GP/40HQ) | 244/528/588 | |
