Multifunctional, heating and water heating
Gas boiler technical parameters | |||||||||

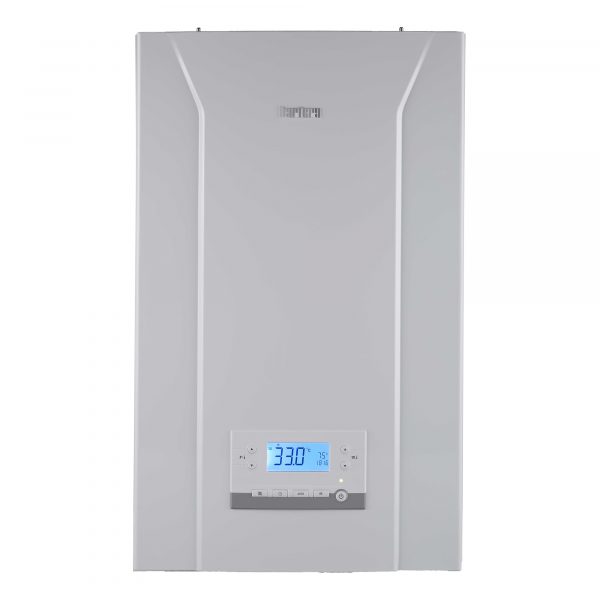

Product Name | Gas Boiler | ||||||||
Product mode | L1PB18 | L1PB20 | L1PB24 | L1PB26 | L1PB28 | L1PB31 | L1PB32 | L1PB35 | L1PB40 |
Power | |||||||||
Rated maximum heat input kW | 18.0 | 20.0 | 24.0 | 26.0 | 28.0 | 30.5 | 32.0 | 35.0 | 40.0 |
Rated minimum heat input kW | 7.1 | 7.1 | 9.1 | 9.1 | 10.5 | 10.5 | 12.2 | 12.3 | 14.0 |
Rated maximum heating heat output kW | 16.1 | 17.6 | 21.4 | 22.9 | 25.2 | 26.9 | 29.0 | 31.2 | 35.2 |
Rated minimum heating heat outputkW | 6.1 | 6.1 | 7.8 | 7.8 | 9.1 | 9.4 | 10.7 | 10.7 | 12.3 |
Air source | |||||||||
Rated gas pressurePa | Natural gas (12T) 2000 | ||||||||
Gas pressure rangePa | Natural gas (12T) 1500-3000 | ||||||||
Heating | |||||||||
Maximum heating temperature | 85 | ||||||||
Maximum working pressureMPa | 0.3 | ||||||||
Relief pressure of safety valveMPa | ≥0.3 | ||||||||
Capacity of expansion tank L | 6 | 8 | 10 | ||||||
Initial pressure of expansion tankMPa | 0.1 | ||||||||
Heating temperature adjustment range℃ | 30-85 | ||||||||
Water circulation mode | Closed-loop forced circulation | ||||||||
Sanitary hot wate | |||||||||
Maximum hot water production rate(△t=30k)kg/min | 7.5 | 8.0 | 10.0 | 10.5 | 12.0 | 12.0 | 13.0 | 13.5 | 15.0 |
Maximum hot water working pressureMPa | 0.6 | ||||||||
Hot water temperature adjustment range ℃ | 30~60 | ||||||||
Machine dimension/weight/joint dimension | |||||||||
Machine dimension mm | 680*403*275 | 745*403*326 | 800*480*350 | ||||||
Net weightkg | 31.5 | 35 | 36 | 44 | 45 | ||||
Supply exhaust pipe mm | φ60×100 | ||||||||
Gas connectioninches | G 3/4 | ||||||||
Heating return water/outlet interface inches | G 3/4 | ||||||||
Cold water inlet and hot water outlet joint inches | G1/2 | ||||||||
Power/Energy/Eficiency | |||||||||
Rated electrical power W | 110 | 125 | 135 | ||||||
Voltage/Frequency V/Hz | ~220/50 | ||||||||
Waterproof level/protectionlevel | IPX4 / I Type | ||||||||
Energy efficiencyleve | 2 | ||||||||
Note: 1-If a water pressure gauge using bar as the unit is used,1bar=0.1Mpa | |||||||||
2-Special gas shall be subject to the nameplate on the machine body. |
