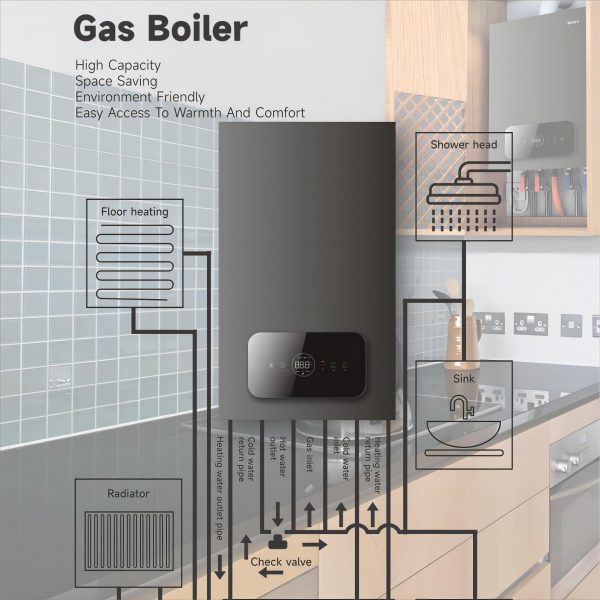

Multifunctional, heating and water heating
Condensing gas boiler technical parameters | |||||||||
Product Name | Condensed gas boiler | ||||||||
Product model | Aluminum heat exchanger | Stainless steel heat exchanger | |||||||
20kW | 24kW | 28kW | 20kW | 24kW | 28kW | 32kW | 36kW | 60kW | |
Maximum input power kW | 20 | 24 | 28 | 20 | 24 | 28 | 32 | 36 | 60 |
Minimum input power kW | 4.5 | 4.8 | 5.6 | 4.5 | 4.8 | 5.6 | 6.4 | 7.2 | 10 |
Power regulation ratio | 1:4.5 | 1:5 | 1:5 | 1:4.5 | 1:5 | 1:5 | 1:5 | 1:5 | 1:6 |
Maximum input power(80/60) kW | 19.5 | 23.4 | 27.2 | 19.5 | 23.3 | 27.3 | 31.2 | 35.5 | 58.4 |
Minimum input power(80/60) kW | 4.4 | 4.7 | 5.5 | 4.4 | 4.7 | 5.5 | 6.3 | 7.1 | 9.7 |
Maximum input power (50/30) kW | 20.8 | 24.7 | 29.1 | 20.7 | 24.8 | 28.9 | 33.2 | 38.7 | 63.4 |
Minimum input power(50/30) kW | 4.6 | 5 | 5.8 | 4.6 | 5 | 5.8 | 6.6 | 7.7 | 10.6 |
Rated power thermal eficiency(80/60) % | 97.5 | 97.6 | 97.3 | 97.5 | 97.2 | 97.5 | 97.5 | 98.6 | 97.3 |
Maximum thermal eficiency(50/30) % | 103.8 | 103 | 103.7 | 103.5 | 103.5 | 103.2 | 103.6 | 107.4 | 105.6 |
30%load thermal efficiency % | 107.1 | 106.9 | 106 | 107.2 | 107.1 | 107 | 107.2 | 107.9 | 107.9 |
Maximum gas consumption(12T) m³/h | 2.12 | 2.54 | 2.97 | 2.12 | 2.54 | 2.97 | 3.39 | 3.81 | 6.36 |
Heating temperature adjustment range ℃ | 30-85 | 30-85 | 30-85 | 30-85 | 30-85 | 30-85 | 30-85 | 30-85 | 30-85 |
Power Supply ~V/Hz | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
Electrical power W | 110 | 110 | 125 | 110 | 110 | 125 | 145 | 145 | |
Protection level IP | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
Pipe diameter mm | 100*60 | 100*60 | 100*60 | 100*60 | 100*60 | 100*60 | 100*60 | 100*60 | 100*60 |
Maximum length of smoke pipe m | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 4 | 4 | 5 |
CO emissions ppm | 95 | 100 | 103 | 101 | 135 | 120 | 130 | 150 | 165 |
Nox emissions ppm | 12 | 14 | 14 | 13 | 15 | 14 | 13 | 16 | 11 |
