Product Overview

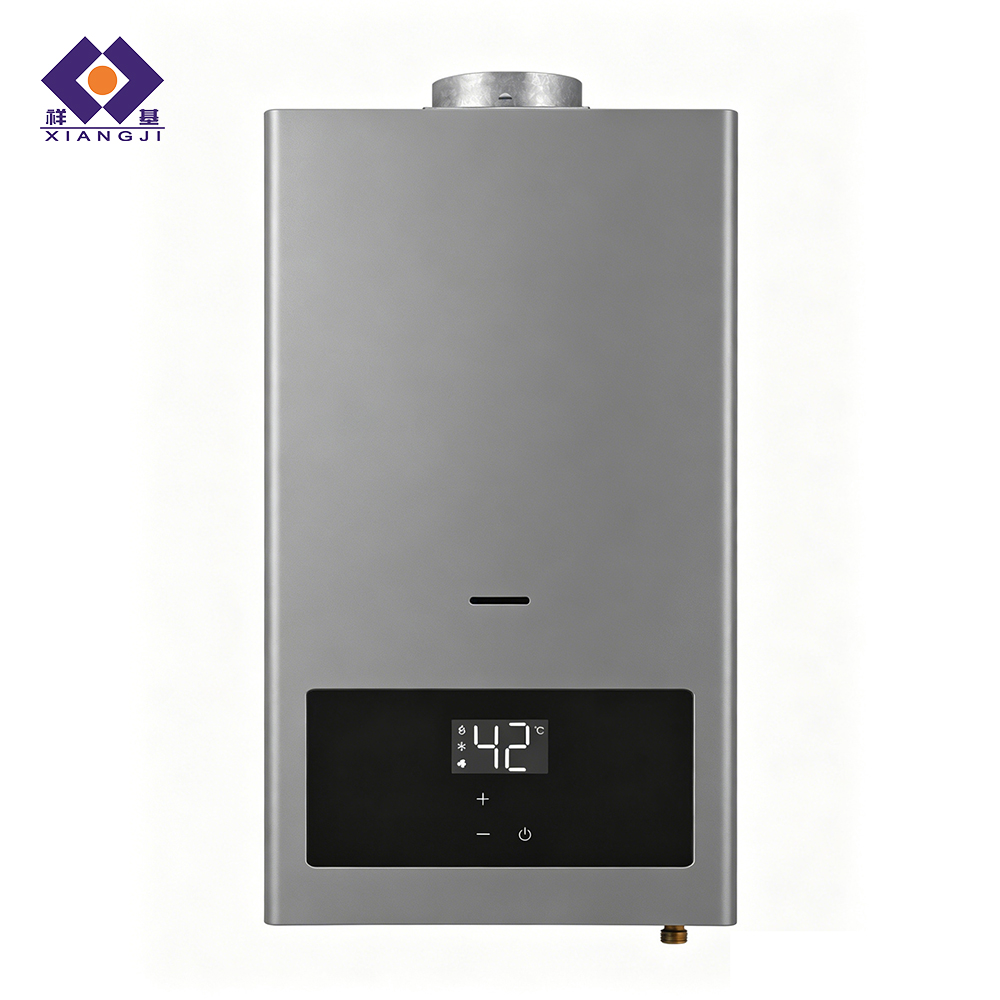

JSD-TB-02 is a digital control natural exhaust gas water heater, available in 10L and 12L capacity versions. It is equipped with a T-shape burner and proportional gas valve, with optional tin-coated copper or oxygen-free copper heat exchangers. The digital display panel delivers precise temperature control, supporting dual power supply modes, and delivers stable instant hot water for basic household bathroom and kitchen use.
Optional Dual-Type Heat Exchanger
Customers can choose tin-coated copper for cost efficiency or oxygen-free copper for superior heat exchange performance and longer service life.
Precise Digital Constant Temperature Control
Proportional valve matches gas output automatically, paired with digital LED display for intuitive real-time temperature adjustment and stable hot water output.
Efficient T-Shape Combustion System
Optimized T-shape burner achieves full combustion, improving thermal efficiency while lowering gas consumption for daily hot water demands.
Flexible Dual Power Input Design
Supports DC 3V battery power or 220V 50Hz mains electricity, adapting to areas with unstable power supply and various installation environments.
| Technical specifications | JSD-TB-02-10L | JSD-TB-02-12L | ||
| Gas type | NG/LPG | NG/LPG | ||
| Rated Power Standard Condition (kW) | 20kW | 24kW | ||
| Water Flow(Ltr/min)△T=25K | 10L/min | 12L/min | ||
| Water Flow(Ltr/min)△T=20K | 13L/min | 15L/min | ||
| Chimney diameter (mm) | Normal 125 | Normal 125 | ||
| Burner type | T-shape burner | T-shape burner | ||
| Burner number | 12 | 13 | ||
| Product Dimensions (mm) HxWxD | 550x328x185 | 610x350x190 | ||
| Package Dimensions (mm) HxWxD | 670x390x240 | 697x416x251 | ||
| Loading Qty (20GP/40GP/40HQ) | 421/876/1062 | 362/758/886 | ||
| Heat exchange optional | Tin-coated/Oxygen-free copper | Tin-coated/Oxygen-free copper | ||
| Electric input | DC 3V / 220V 50Hz | DC 3V / 220V 50Hz | ||
