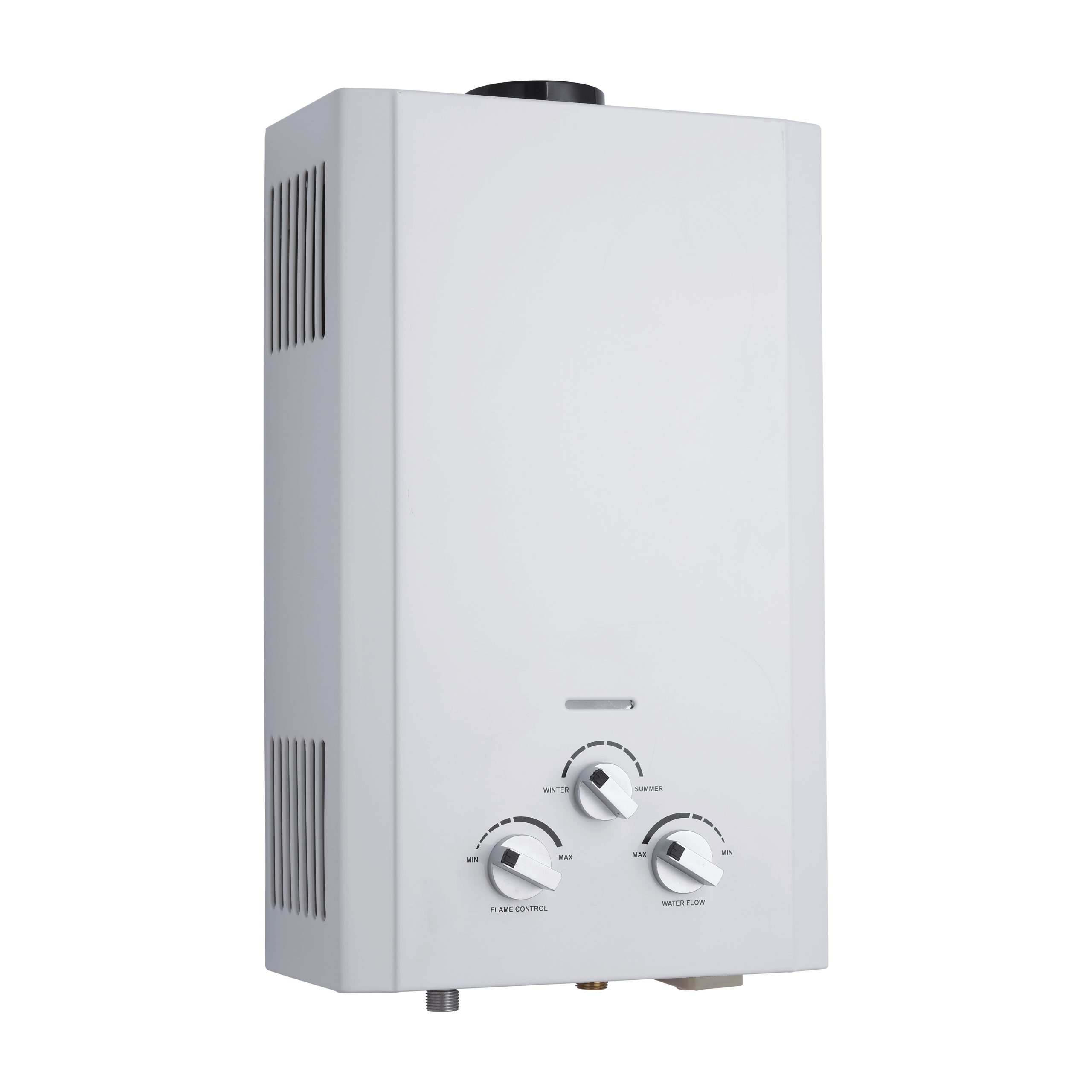

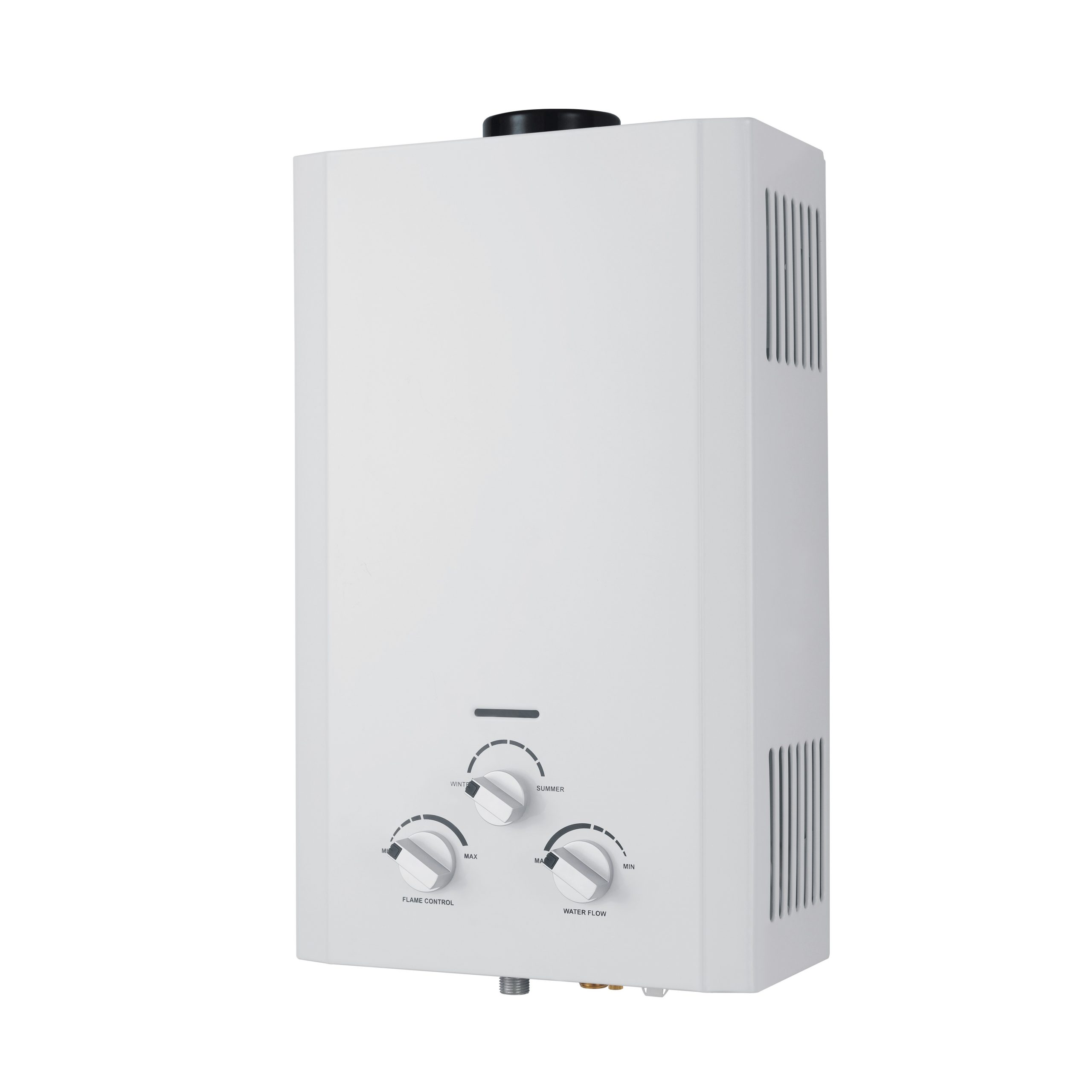

XJ-Q 10-16L Natural Exhaust Gas Water Heater With Tin-coated Copper Heat Exchanger

The product configuration can be customized meet the certification requirements of different markets

Natural exhaust

Product liter covers 10L~16L

Suitable for normal water pressure condition

Suitable for indoor and semi-outdoor environment

Tin-coated or oxygen-free heat exchanger optional

Different chimney design meets different exhaustion requirement

Digital display optional

Knob of winter & summer mode, water flow adjustment optional

Multi-sensors optional

XJ-Q Flue Type With T-shape Burner

Technical specifications	XJ-Q-10L	XJ-Q-12L	XJ-Q-14L	XJ-Q-16L
Exhaustion	Natural	Natural	Natural	Natural
Product Dimensions (mm) HxWxD	610x350x182	610x350x190	610x350x168	680x420x205
Gas type	NG/LPG	NG/LPG	NG/LPG	NG/LPG
Rated Power Standard Condition (kW)	20kW	24kW	28kW	32kW
Electric input	DC 3V	DC 3V	DC 3V	DC 3V
Approximate water flow 25℃(with mixer)	10L/min	12L/min	14L/min	16L/min
Chimney diameter (mm)	110/120/125	125	130	130
Burner type	T-shape burner	T-shape burner	T-shape burner	T-shape burner
Burner number	13	14	15	18
