Product Overview

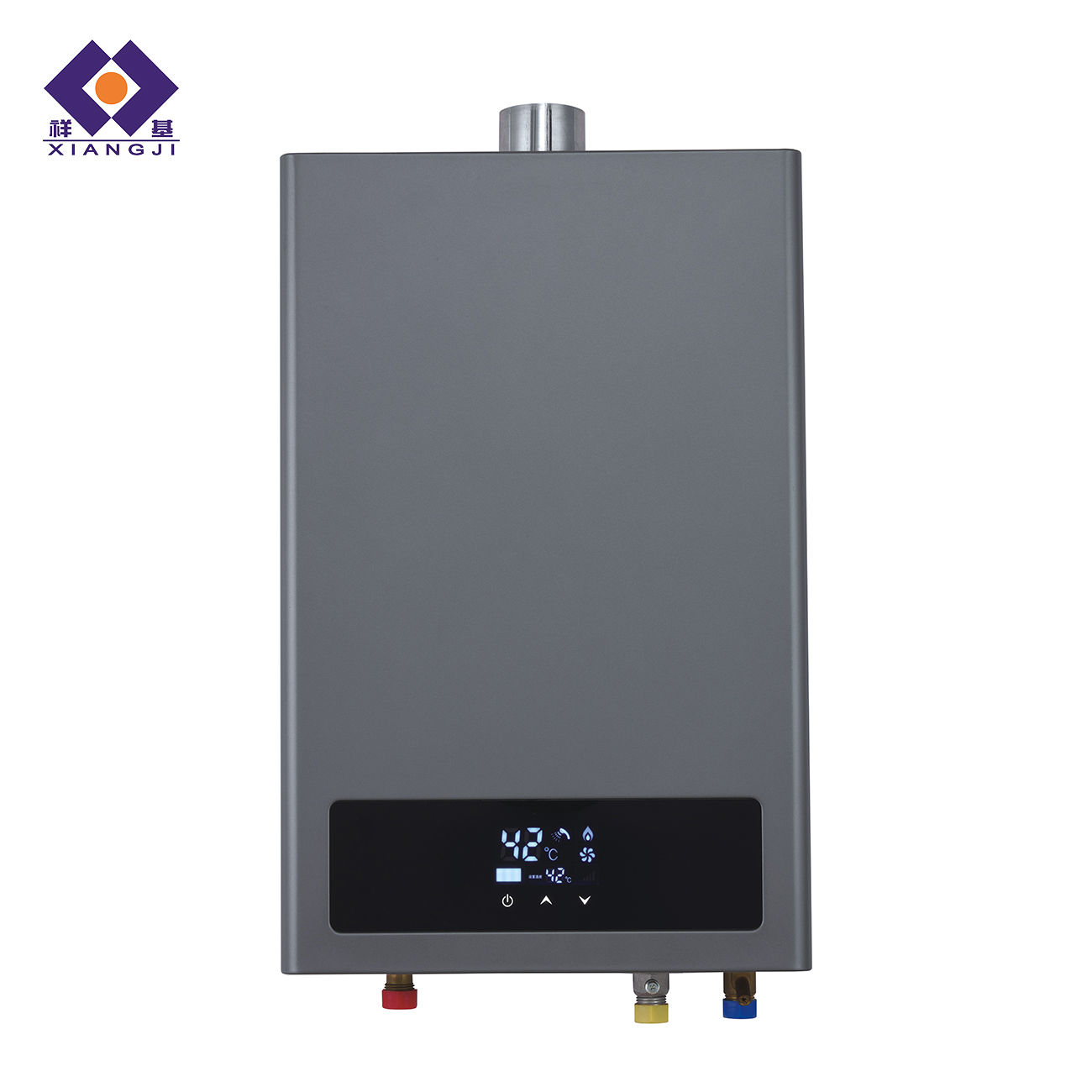

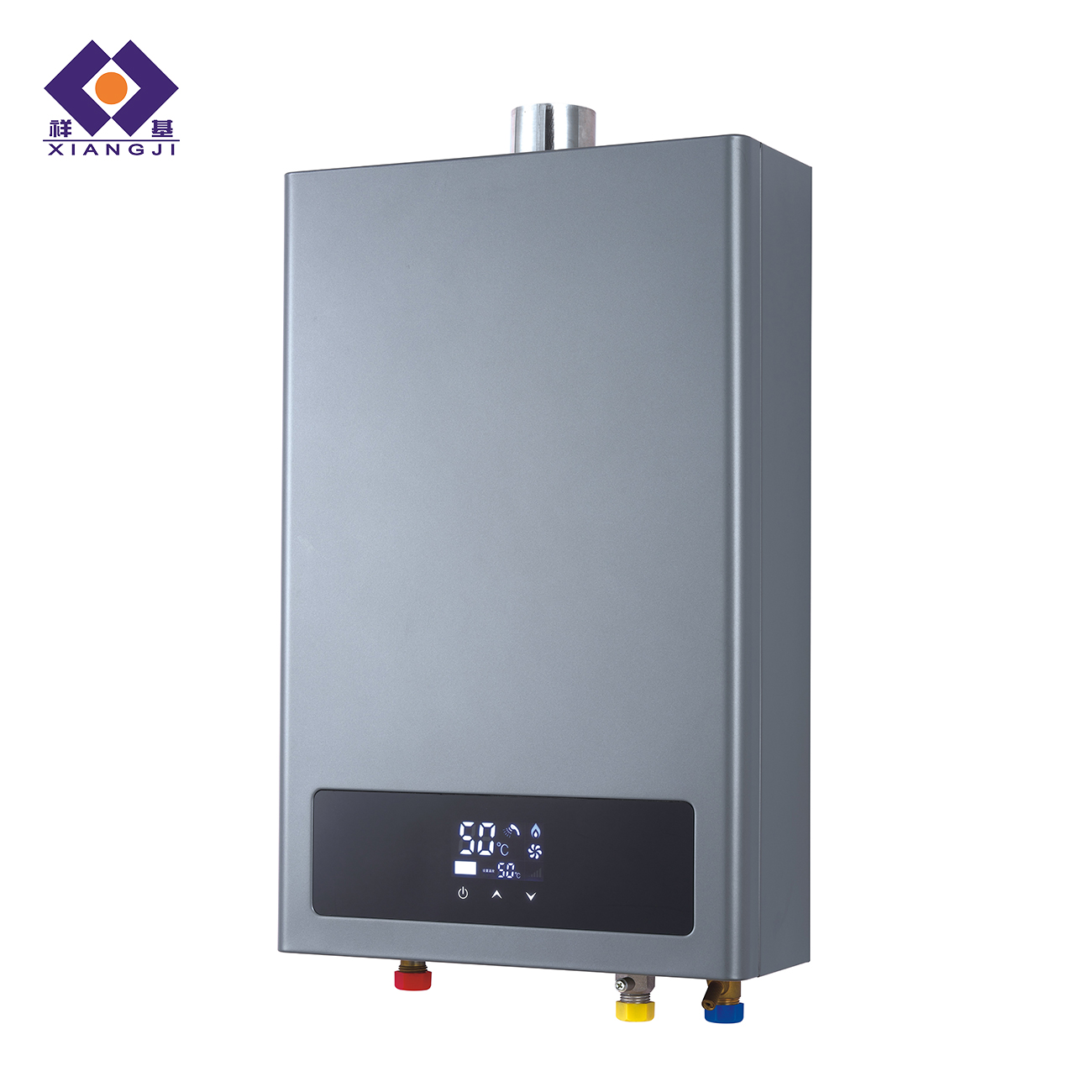

The JSQ-TA-03 Forced Exhaust Gas Water Heater is designed to provide efficient, reliable and comfortable hot water for residential applications. Featuring a fan-assisted forced exhaust system, integrated heat exchanger and burner, and intelligent digital temperature control, it delivers stable performance with enhanced energy efficiency.
Available in 13L, 16L, 18L and 20L capacities, the series offers multiple appearance options and OEM/ODM customization to meet the diverse requirements of global markets. Built with high-quality components and multiple safety protection systems, the JSQ-TA-03 Series combines modern design with dependable everyday performance.
High-Efficiency Heating
Equipped with an integrated heat exchanger and burner, the JSQ-TA-03 Series delivers fast heat transfer and high thermal efficiency, providing a continuous and comfortable hot water supply.
Intelligent Temperature Control
The digital control system works together with a proportional gas valve to maintain a stable outlet water temperature, ensuring a comfortable user experience under different operating conditions.
Reliable Safety Protection
Designed with multiple safety features, including flame failure protection, overheat protection and fan failure detection, the water heater ensures safe and reliable operation for everyday use.
Flexible OEM & ODM Solutions
Available in 13L, 16L, 18L and 20L capacities with multiple front panel designs and finish options, this series can be customized to meet the requirements of different international markets.
| Technical specifications | JSD-TA-03-13L | JSD-TA-03-16L | JSD-TA-03-18L | JSD-TA-03-20L | ||||
| Gas type | NG/LPG | NG/LPG | NG/LPG | NG/LPG | ||||
| Rated Power Standard Condition (kW) | 25kW | 30kW | 34kW | 38kW | ||||
| Minimum Rated Power Standard Condition (kW) | 4kW | 2kW | 3kW | 3kW | ||||
| Water Flow(Ltr/min)△T=25K | 13L/min | 16L/min | 18L/min | 20L/min | ||||
| Water Flow(Ltr/min)△T=20K | 16L/min | 20L/min | 22L/min | 25L/min | ||||
| Chimney diameter (mm) | 60mm | 60mm | 70mm | 70mm | ||||
| Burner type | Balanced combustion chamber | Balanced combustion chamber | Balanced combustion chamber | Balanced combustion chamber | ||||
| Burner number | 5 | 7 | 7 | 7 | ||||
| Number of combustion section | 2 | 4 | 4 | 4 | ||||
| Combustor cooling method | Air-cooling | Air-cooling | Air-cooling | Air-cooling | ||||
| Type of fan | DC | DC | DC | DC | ||||
| Fan installation position | Top-mounted | Top-mounted | Top-mounted | Top-mounted | ||||
| Performance against wind pressure | >200Pa | >300Pa | >250Pa | >250Pa | ||||
| Product Dimensions (mm) HxWxD | 540x348x180 | 540x348x180 | 570x358x203 | 570x358x203 | ||||
| Package Dimensions (mm) HxWxD | 708x530x268 | 708x530x268 | 708x530x268 | 708x530x268 | ||||
| Loading Qty (20GP/40GP/40HQ) | 241/507/633 | 241/507/633 | 241/507/633 | 241/507/633 | ||||
| Heat exchange optional | Oxygen-free copper/stainless steel | Oxygen-free copper/stainless steel | Oxygen-free copper/stainless steel | Oxygen-free copper/stainless steel | ||||
Product Overview
The JSQ-TA-04 Forced Exhaust Gas Water Heater is designed to provide efficient, reliable and comfortable hot water for residential applications. Featuring a fan-assisted forced exhaust system, integrated heat exchanger and burner, and intelligent digital temperature control, it delivers stable performance with enhanced energy efficiency.
Available in 13L and 16L capacities, the series offers multiple appearance options and OEM/ODM customization to meet the diverse requirements of global markets. Built with high-quality components and multiple safety protection systems, the JSQ-TA-04 Series combines modern design with dependable everyday performance.
Product Overview
The JSQ-TW-CD Series is a premium condensing gas water heater engineered for maximum energy efficiency and superior performance. Rated at Energy Efficiency Level 1, it integrates a condenser with an oxygen-free copper heat exchanger to extract additional heat from exhaust gases, significantly reducing energy waste. Delivering 16L/min at ΔT=25K, this 27kW unit combines advanced condensation technology with a sleek, slim profile—making it an ideal choice for eco-conscious households seeking lower utility bills without compromising on hot water comfort.
Product Overview
The JSQ-TA-02 Forced Exhaust Gas Water Heater is designed to deliver a quiet, efficient and reliable hot water experience for modern homes. Featuring a high-performance DC fan, oxygen-free copper heat exchanger and proportional gas valve, it provides stable combustion, precise temperature control and enhanced energy efficiency.
Certified with CCLC Level 1 Silent performance, the TA-02 Series offers low-noise operation without compromising heating performance. Available in 13L and 16L capacities with multiple front panel designs, it is an ideal solution for residential applications and OEM/ODM customization.
Product Overview
The Forced Exhaust Gas Water Heater Series is designed for safe, efficient and comfortable domestic hot water supply. Equipped with an intelligent fan-assisted exhaust system, the products ensure stable combustion while improving installation flexibility.
Available in capacities from 10L to 20L, this series supports multiple appearance designs, digital temperature control and OEM/ODM customization for different international markets.
