Product Overview

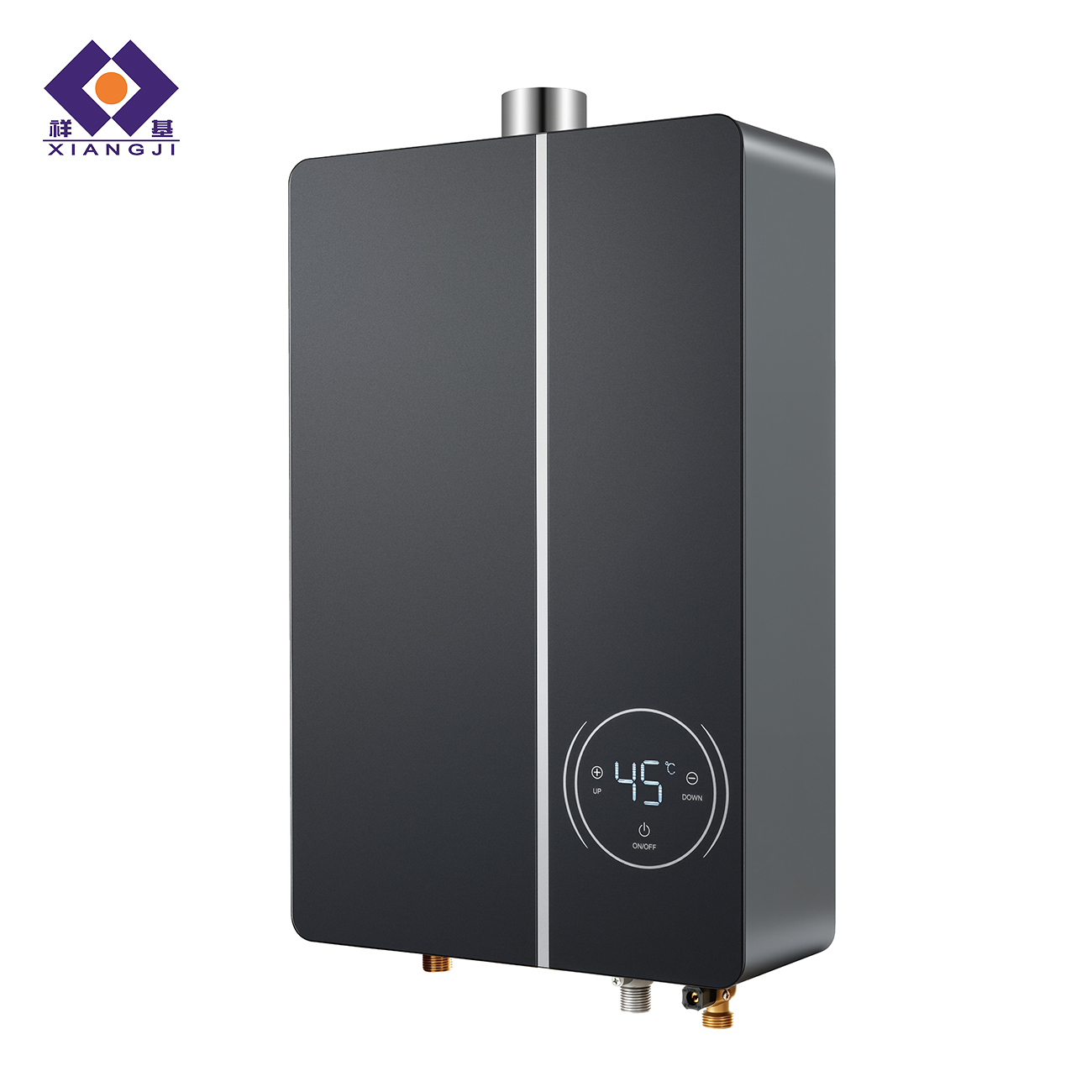

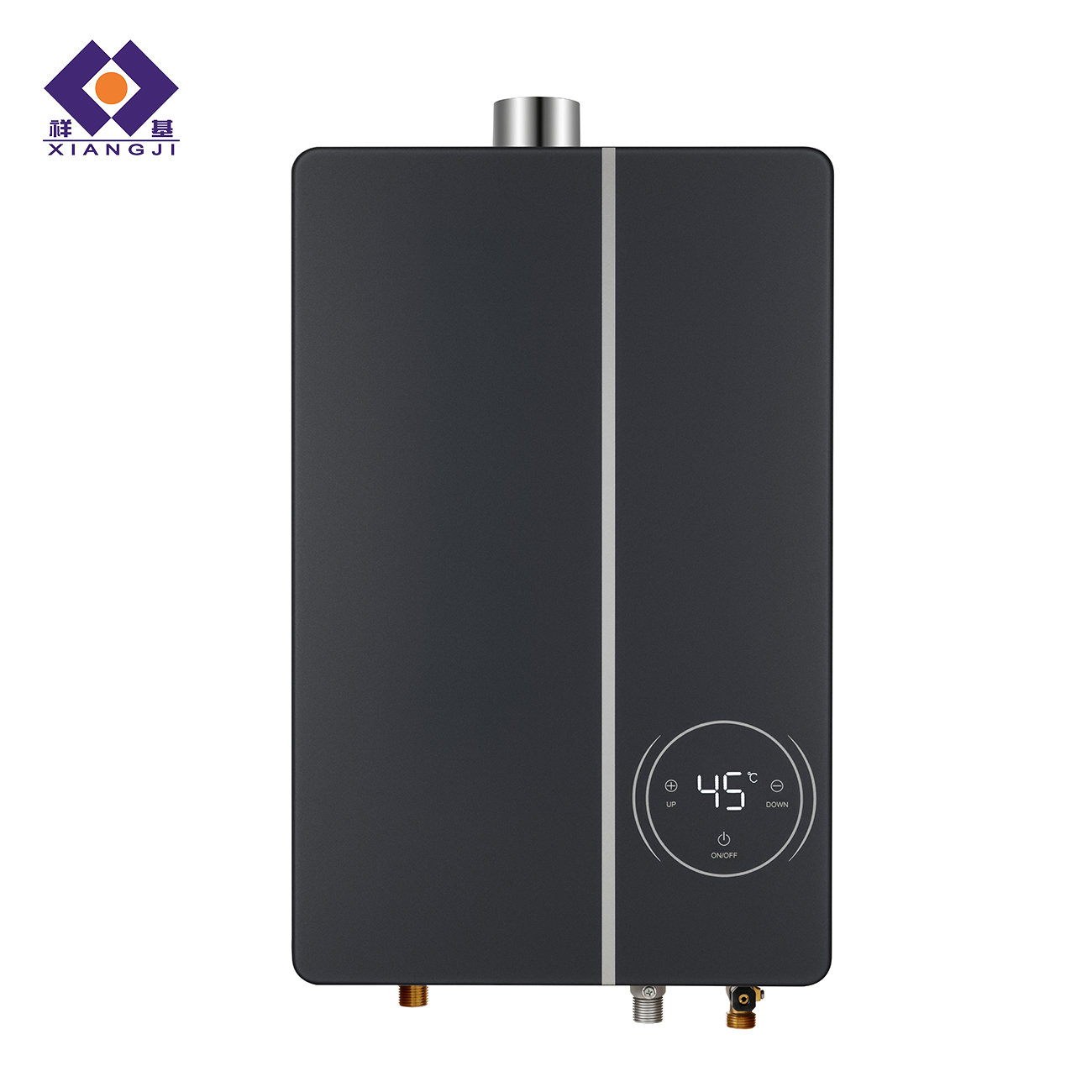

The Forced Exhaust Gas Water Heater Series is designed for safe, efficient and comfortable domestic hot water supply. Equipped with an intelligent fan-assisted exhaust system, the products ensure stable combustion while improving installation flexibility.
Available in capacities from 10L to 20L, this series supports multiple appearance designs, digital temperature control and OEM/ODM customization for different international markets.
Efficient Forced Exhaust
A DC fan quickly removes combustion gases, ensuring safer operation and stable combustion.
Oxygen-free Copper Heat Exchanger
High thermal conductivity for improved heating efficiency and longer service life.
Intelligent Temperature Control
Digital temperature adjustment with precise control for comfortable hot water supply.
Multiple Safety Protection
Integrated protection functions including:
| Technical specifications | JSQ-TW-02-10L | JSQ-TW-02-12L | JSQ-TW-02-14L | JSQ-TW-02-16L | JSQ-TW-02-18L | JSQ-TW-02-20L | ||||||
| Gas type | NG/LPG | NG/LPG | NG/LPG | NG/LPG | NG/LPG | NG/LPG | ||||||
| Rated Power Standard Condition (kW) | 19kW | 23kW | 27kW | 30kW | 34kW | 38kW | ||||||
| Minimum Rated Power Standard Condition (kW) | 3.5kW | 4.0kW | 3.5kW | 4.0kW | 3.5kW | 4.0kW | 3.5kW | 3.5kW | 3kW | 3kW | ||
| Water Flow(Ltr/min)△T=25K | 10L/min | 12L/min | 14L/min | 16L/min | 18L/min | 20L/min | ||||||
| Water Flow(Ltr/min)△T=20K | 12L/min | 15L/min | 17L/min | 20L/min | 22L/min | 25L/min | ||||||
| Chimney diameter (mm) | 60mm | 60mm | 60mm | 60mm | 60mm | 70mm | ||||||
| Burner type | 4 rows chamber | 5 rows chamber | 6 rows chamber | 7 rows chamber | 6 rows chamber | 7 rows chamber | ||||||
| Number of combustion section | 2 | 2 | 3 | 4 | 4 | 4 | ||||||
| Combustor cooling method | Water-cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling | ||||||
| Type of fan | DC | AC | DC | AC | DC | AC | DC | AC | DC | DC | ||
| Fan installation position | Top-mounted | Top-mounted | Top-mounted | Top-mounted | Top-mounted | Top-mounted | ||||||
| Performance against wind pressure | >250Pa | >100Pa | >250Pa | >100Pa | >200Pa | >100Pa | >250Pa | >100Pa | >200Pa | >200Pa | ||
| Product Dimensions (mm) HxWxD | 540x348x146 | 540x348x172 | 540x348x180 | 540x348x180 | 570x358x180 | 540x348x199 | ||||||
| Package Dimensions (mm) HxWxD | 708x530x205 | 708x530x268 | 708x530x268 | 708x530x268 | 747x525x240 | 708x530x268 | ||||||
| Loading Qty (20GP/40GP/40HQ) | 347/726/854 | 241/507/633 | 241/507/633 | 241/507/633 | 276/582/707 | 241/507/633 | ||||||
Product Overview
The JSQ-TA-04 Forced Exhaust Gas Water Heater is designed to provide efficient, reliable and comfortable hot water for residential applications. Featuring a fan-assisted forced exhaust system, integrated heat exchanger and burner, and intelligent digital temperature control, it delivers stable performance with enhanced energy efficiency.
Available in 13L and 16L capacities, the series offers multiple appearance options and OEM/ODM customization to meet the diverse requirements of global markets. Built with high-quality components and multiple safety protection systems, the JSQ-TA-04 Series combines modern design with dependable everyday performance.
Product Overview
The JSQ-TW-CD Series is a premium condensing gas water heater engineered for maximum energy efficiency and superior performance. Rated at Energy Efficiency Level 1, it integrates a condenser with an oxygen-free copper heat exchanger to extract additional heat from exhaust gases, significantly reducing energy waste. Delivering 16L/min at ΔT=25K, this 27kW unit combines advanced condensation technology with a sleek, slim profile—making it an ideal choice for eco-conscious households seeking lower utility bills without compromising on hot water comfort.
Product Overview
The JSQ-WA-01 Compact Series delivers high-performance hot water in a space-saving design. Available in 13L and 16L models (up to 30kW), it ensures stable flow even with simultaneous multi-point usage. With smart connectivity, advanced safety features, and robust wind resistance, this series is engineered for modern apartments, high-rise buildings, and renovation projects where reliability and efficiency matter most.
Product Overview
The JSQ-TA-03 Forced Exhaust Gas Water Heater is designed to provide efficient, reliable and comfortable hot water for residential applications. Featuring a fan-assisted forced exhaust system, integrated heat exchanger and burner, and intelligent digital temperature control, it delivers stable performance with enhanced energy efficiency.
Available in 13L, 16L, 18L and 20L capacities, the series offers multiple appearance options and OEM/ODM customization to meet the diverse requirements of global markets. Built with high-quality components and multiple safety protection systems, the JSQ-TA-03 Series combines modern design with dependable everyday performance.
