Product Overview

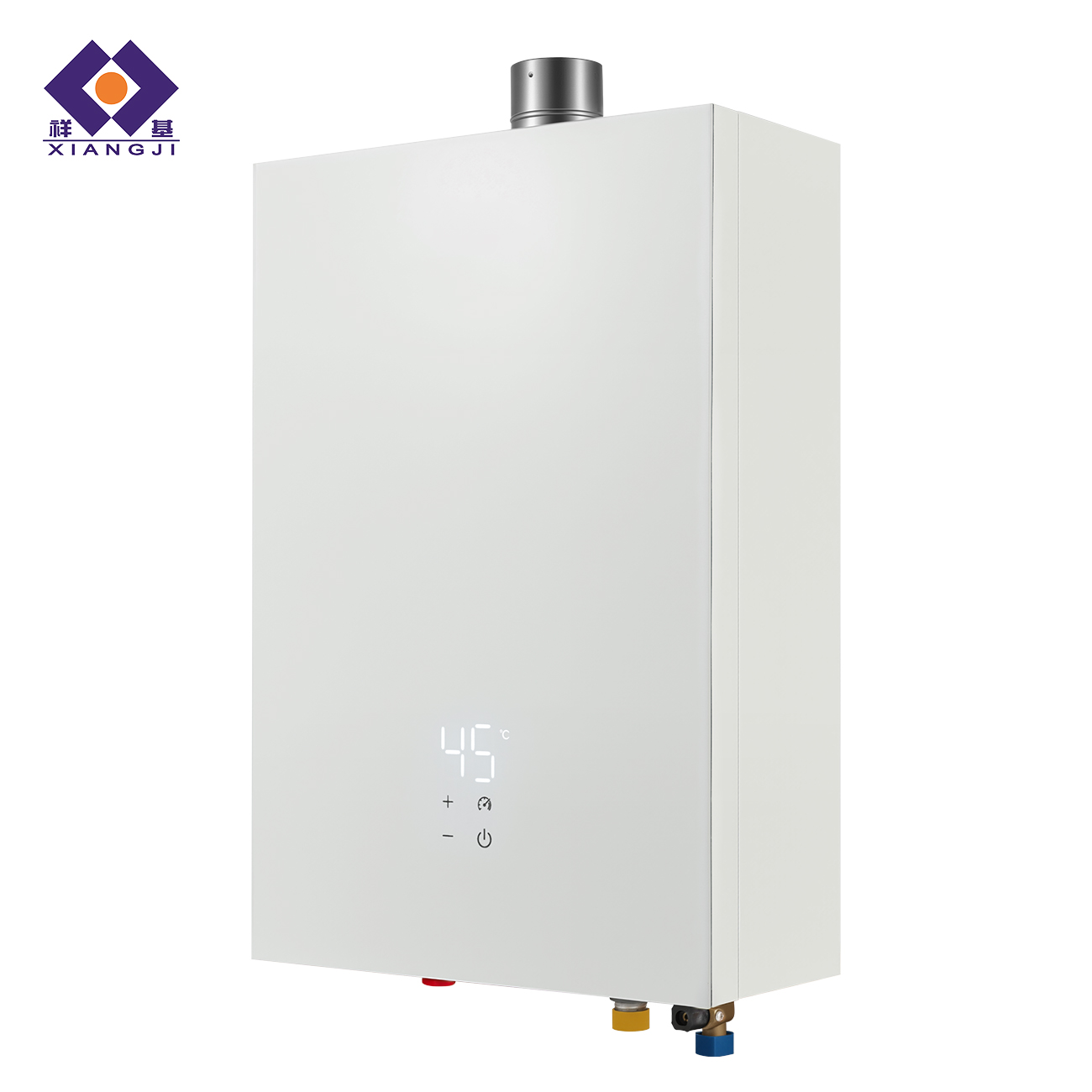

The JSQ-TA-04 Forced Exhaust Gas Water Heater is designed to provide efficient, reliable and comfortable hot water for residential applications. Featuring a fan-assisted forced exhaust system, integrated heat exchanger and burner, and intelligent digital temperature control, it delivers stable performance with enhanced energy efficiency.
Available in 13L and 16L capacities, the series offers multiple appearance options and OEM/ODM customization to meet the diverse requirements of global markets. Built with high-quality components and multiple safety protection systems, the JSQ-TA-04 Series combines modern design with dependable everyday performance.
High-Efficiency Heating
Equipped with an integrated heat exchanger and burner, the JSQ-TA-04 Series delivers fast heat transfer and high thermal efficiency, providing a continuous and comfortable hot water supply.
Intelligent Temperature Control
The digital control system works together with a proportional gas valve to maintain a stable outlet water temperature, ensuring a comfortable user experience under different operating conditions.
Reliable Safety Protection
Designed with multiple safety features, including flame failure protection, overheat protection and fan failure detection, the water heater ensures safe and reliable operation for everyday use.
Flexible OEM & ODM Solutions

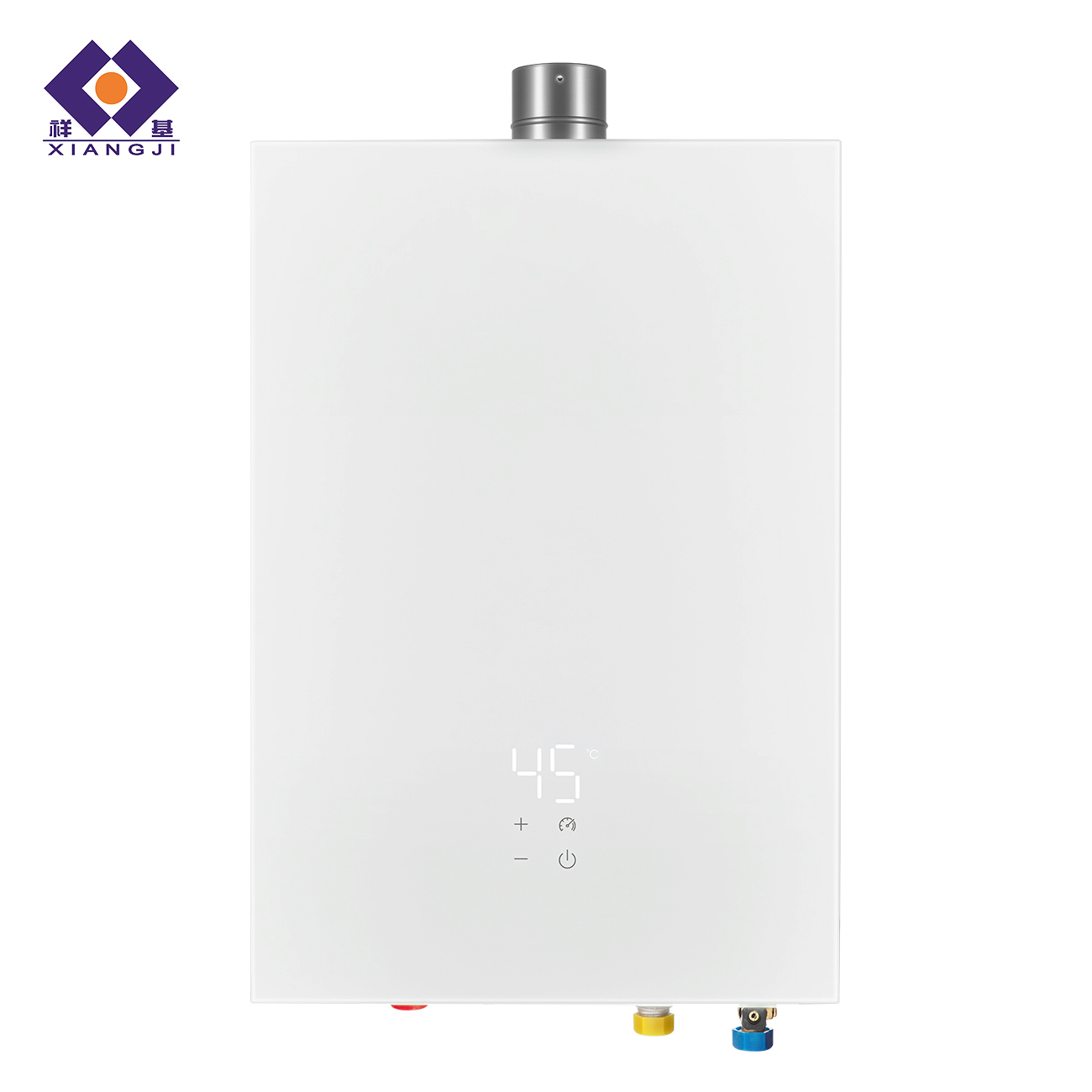

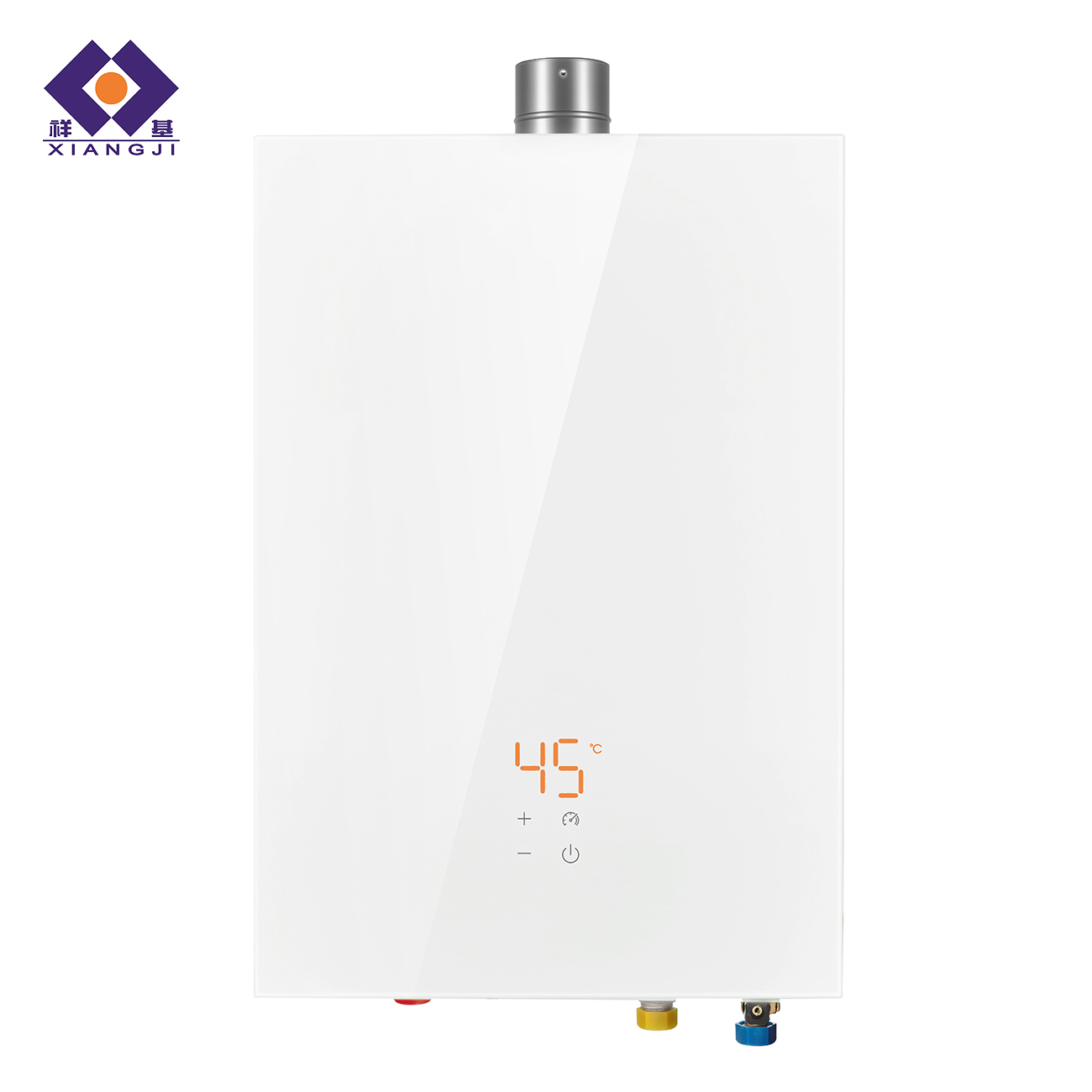

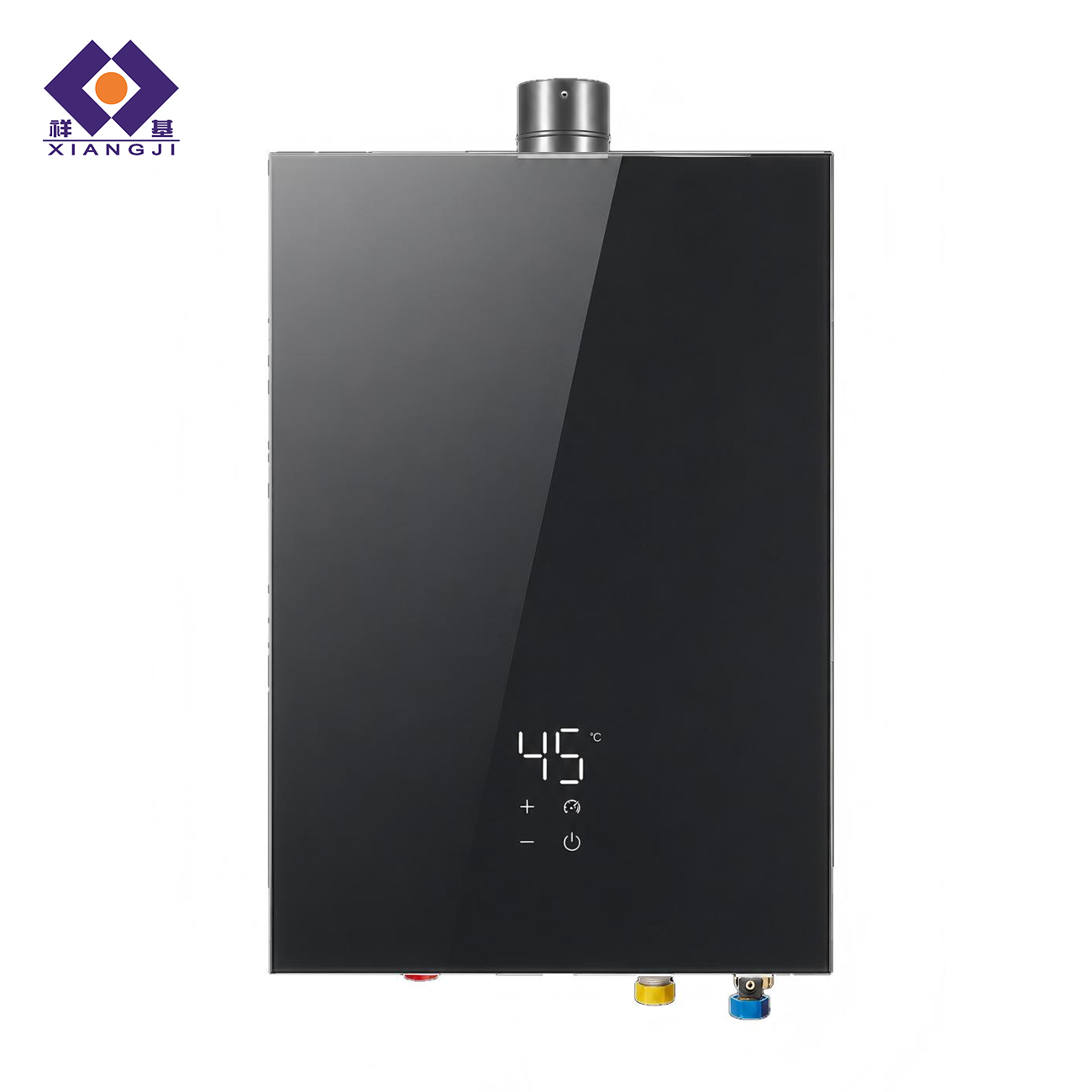

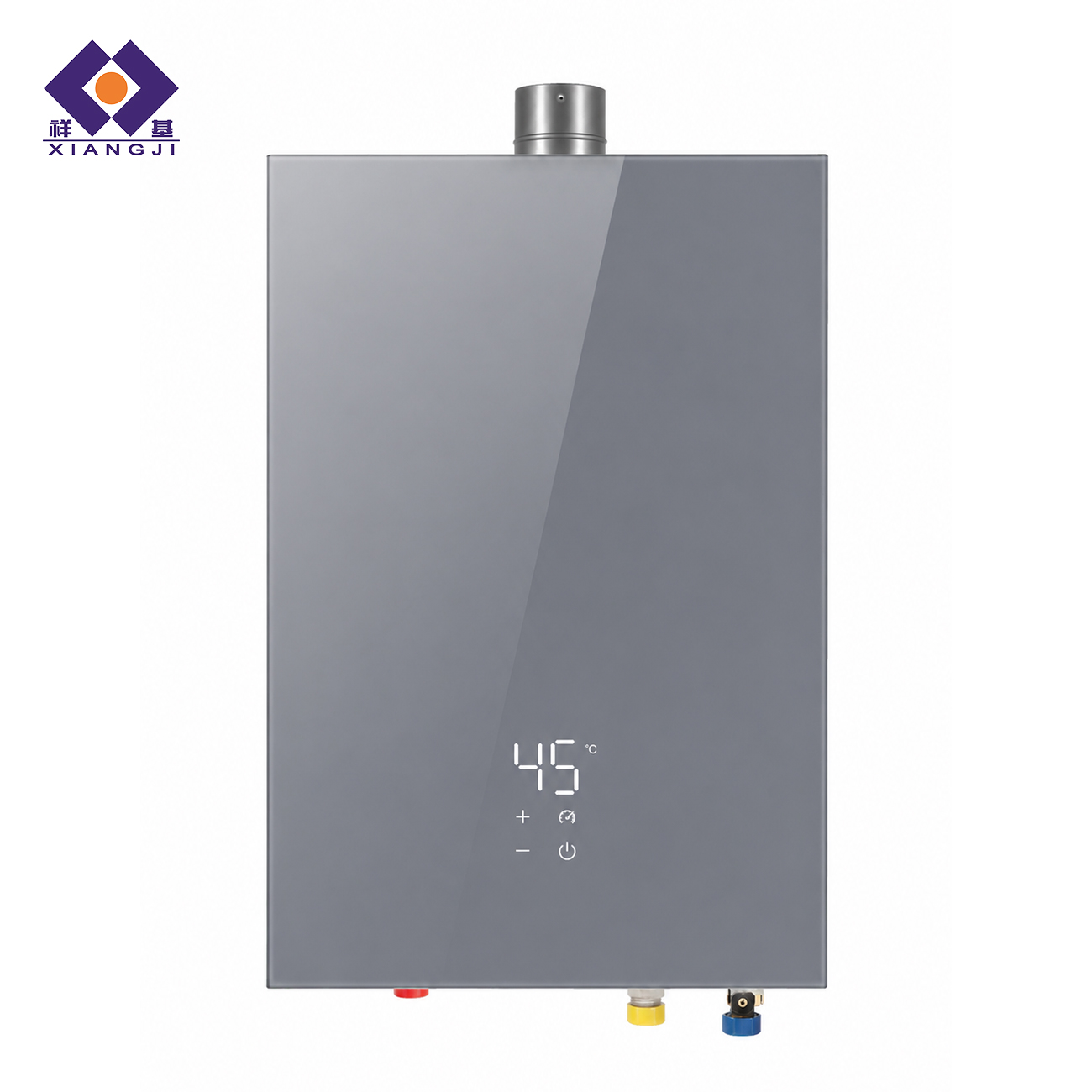

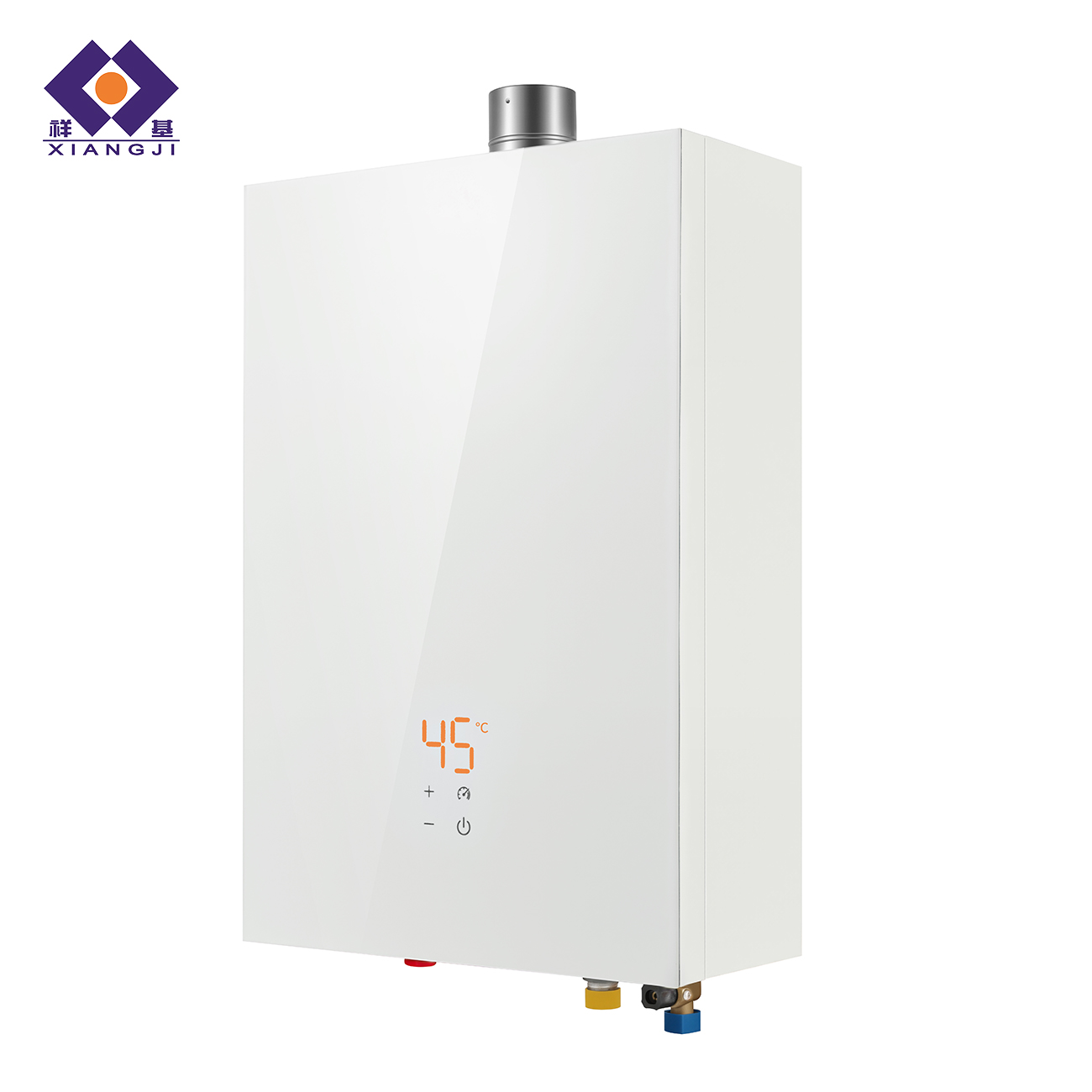

Available in 13L and 16L capacities with multiple front panel designs and finish options, this series can be customized to meet the requirements of different international markets.
| Technical specifications | JSD-TA-04-13L | JSD-TA-04-16L | ||
| Gas type | NG/LPG | NG/LPG | ||
| Rated Power Standard Condition (kW) | 25kW | 30kW | ||
| Minimum Rated Power Standard Condition (kW) | 4kW | 2kW | ||
| Water Flow(Ltr/min)△T=25K | 13L/min | 16L/min | ||
| Water Flow(Ltr/min)△T=20K | 16L/min | 20L/min | ||
| Chimney diameter (mm) | 60mm | 60mm | ||
| Burner type | Balanced combustion chamber | Balanced combustion chamber | ||
| Burner number | 5 | 7 | ||
| Number of combustion section | 2 | 4 | ||
| Combustor cooling method | Air-cooling | Air-cooling | ||
| Type of fan | DC | DC | ||
| Fan installation position | Top-mounted | Top-mounted | ||
| Performance against wind pressure | >200Pa | >300Pa | ||
| Product Dimensions (mm) HxWxD | 520x350x199 | 520x350x199 | ||
| Package Dimensions (mm) HxWxD | 683x525x260 | 683x525x260 | ||
| Loading Qty (20GP/40GP/40HQ) | 324/666/740 | 324/666/740 | ||
